Windows are more than just a source of light and ventilation. They influence the aesthetics, energy efficiency, and structural integrity of a building. Among various window framing materials, aluminum has emerged as a popular and practical choice, especially in modern architecture. At the heart of every aluminum-framed window lies the aluminum window profile—a specially designed cross-section that gives shape and structure to the window frame.
But what exactly are aluminum window profiles? How are they made, and what makes them so widely used in both residential and commercial construction? This guide will answer those questions and more. Whether you're a homeowner considering window replacements or a professional involved in building design, understanding aluminum window profiles will help you make smarter, more informed decisions.

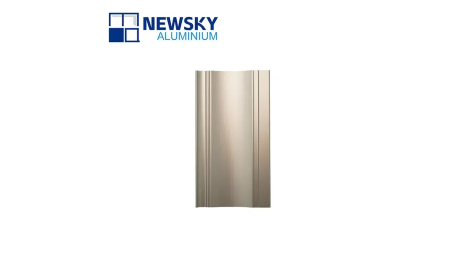

An aluminum window profile is a specially extruded section of aluminum that forms the frame and sash of a window system. It is shaped using dies and molds to meet specific performance and aesthetic standards. These profiles provide the structural support needed for window panes, seals, locks, and handles.
The design of the profile determines not just the look of the window, but also how it performs in terms of insulation, waterproofing, and durability. Profiles can be slim and modern or thick and robust, depending on the application. Their cross-sectional shape typically includes multiple chambers or barriers that enhance strength, thermal performance, and sound insulation.
There are several materials available for window frames, including wood, vinyl (PVC), and fiberglass. However, aluminum remains a top choice due to its combination of strength, durability, and sleek appearance. Here’s why:
Aluminum is a metal with a high strength-to-weight ratio. This allows for thinner frames that can still support large glass panels, offering more expansive views and natural light.
Unlike wood, aluminum does not warp, crack, or swell with moisture. It’s resistant to corrosion and can withstand harsh environmental conditions, making it ideal for both coastal and urban locations.
Aluminum windows require minimal upkeep. A periodic cleaning is usually enough to keep them looking good and functioning properly. They also don’t need repainting or sealing like wooden frames.
Thanks to aluminum's malleability and strength, it can be extruded into a wide range of shapes and sizes. This gives architects and homeowners greater freedom to customize their windows.
Aluminum profiles lend a clean, minimalist look that pairs well with contemporary architectural styles. They can be anodized or powder-coated in various colors to match the design palette.
The key process behind the creation of aluminum window profiles is extrusion. Here’s how it works:
Aluminum billets—solid cylindrical blocks of aluminum alloy—are preheated to make them malleable.
The heated billet is forced through a shaped steel die using a powerful hydraulic press. As it emerges from the die, it takes on the desired cross-sectional shape of the window profile.
The extruded profile is cooled using air or water. Then it is stretched to straighten and relieve internal stress.
The long extrusions are cut into standard lengths (usually around 6 meters) and heat-treated to improve hardness and mechanical properties.
Depending on the application, the profiles may be anodized or powder-coated for added durability and visual appeal. Anodizing adds a protective oxide layer, while powder coating allows for a wide range of colors.
Aluminum window profiles come in a variety of forms depending on their function within the window system. Common types include:
These form the outer border of the window and are fixed to the wall. They provide the base structure onto which sashes or panels are attached.
Sash profiles hold the actual glass pane and are either fixed or operable (e.g., for casement or sliding windows). They fit inside the frame and often contain grooves for seals and locking mechanisms.
These vertical or horizontal bars divide a window into multiple sections or panes. They help support large glass areas while maintaining design continuity.
These slim profiles hold the glass securely within the sash. They are usually clipped or snapped into place and can be removed for glass replacement.
In energy-efficient windows, a thermal break—a non-metallic, insulating barrier—is inserted between the inner and outer aluminum profiles. This minimizes heat transfer and improves insulation.
One of the most important considerations when selecting aluminum window profiles is whether or not they include a thermal break.
These are solid aluminum profiles with no insulation barrier. They are strong and cost-effective but have poor thermal insulation. They are best suited for interior partitions or mild climates.
These feature a plastic (often polyamide) insert between the inner and outer sections of the profile. This break significantly reduces heat loss and condensation, making it ideal for energy-efficient buildings in colder or variable climates.
Though more expensive, thermal break aluminum windows pay off in the long run through lower heating and cooling costs.
When evaluating aluminum window profiles, consider the following performance factors:
Thermal performance is measured by the U-value (lower is better). Profiles with thermal breaks and multi-chambered designs help retain indoor heat in winter and block outdoor heat in summer.
Well-designed aluminum profiles with tight seals can significantly reduce noise from the outside—ideal for homes near roads, railways, or busy urban areas.
Seals and drainage systems are integrated into the profile design to prevent air and water leakage. This ensures comfort and prevents damage to interiors.
Strong aluminum profiles provide a solid foundation for secure locks and anti-theft mechanisms. Look for profiles that meet recognized security standards.
The profile shape, color, and surface finish contribute to the window’s overall look. Modern profiles tend to have slimmer sightlines and cleaner edges.
Surface finishing not only affects how aluminum profiles look but also how they perform. Common options include:
This electrochemical process thickens the natural oxide layer, enhancing corrosion resistance and giving a metallic finish in various shades such as silver, bronze, or black.
Powder coating involves spraying dry pigment onto the profile, which is then baked to form a tough, colorful layer. It offers better customization and UV protection than anodizing.
This decorative finish replicates the look of wood while retaining the benefits of aluminum. It's a popular choice for homeowners who want a classic appearance without the drawbacks of real wood.
Aluminum window profiles are incredibly versatile and used in a variety of buildings:
Residential Homes: Sleek, modern designs with thermal breaks for energy efficiency.
Commercial Buildings: Large-scale curtain walls and glass façades supported by strong aluminum frames.
Industrial Facilities: Durable and low-maintenance profiles for high-traffic environments.
High-Rise Apartments: Lightweight frames that don’t add excessive load to tall structures.
Climate: Choose thermal break profiles for colder regions or energy-efficient buildings.
Budget: Non-thermal break profiles are more affordable but offer less insulation.
Aesthetic Needs: Consider slim vs. chunky designs, color, and surface finish.
Glazing Type: Single, double, or triple glazing will affect the profile requirements.
Installation Method: Profiles should match the wall type and installation method (e.g., inward or outward opening).
Aluminum window profiles are more than just structural elements—they are the backbone of modern window design. From strength and durability to energy efficiency and aesthetics, aluminum profiles offer a wide range of benefits that make them suitable for almost any building application. By understanding their types, manufacturing process, and performance features, homeowners and professionals alike can make well-informed decisions that enhance the comfort, appearance, and value of their properties.
As demand grows for smarter, greener buildings, aluminum window profiles will continue to evolve—offering new levels of performance and design flexibility. Whether you're constructing a new home or upgrading existing windows, aluminum profiles provide a reliable and stylish solution built for the future.
