Architectural design currently demands visually striking, matte dark finishes. Engineers face a tough challenge when specifying these architectural aesthetics. You must balance bold visual appeal against the strict mechanical tolerances required for functional door assemblies. High-performance door systems require highly precise components to operate perfectly. However, surface treatments physically alter metal dimensions. The anodizing process changes the part geometry at a microscopic level. This dimensional shift can easily derail hardware integration, hinge mounts, or weather-stripping channels. Ignoring these changes leads to assembly failures on the factory floor. We created this guide to solve this exact engineering problem. You will learn an evidence-based framework for specifying surface treatments correctly. We will show you how to calculate tolerance shifts accurately for critical mating parts. You will also discover how to vet extrusion partners properly for commercial and residential door systems.
Tolerance Shifts: Anodizing processes alter physical dimensions; precise calculation of pre- and post-treatment tolerances is critical for hardware integration.
Coating Specifications: Architectural-grade black anodizing requires specific micron thicknesses (typically 15-25µm) to prevent UV degradation and mechanical wear.
Alloy Dependency: Consistent color matching and structural integrity depend heavily on selecting the correct billet grade (usually 6063-T5 or T6) for an aluminum door profile.
Supplier Vetting: Reliable procurement requires verifying a supplier's internal QC for batch-to-batch color consistency and ISO/EN standard compliance.

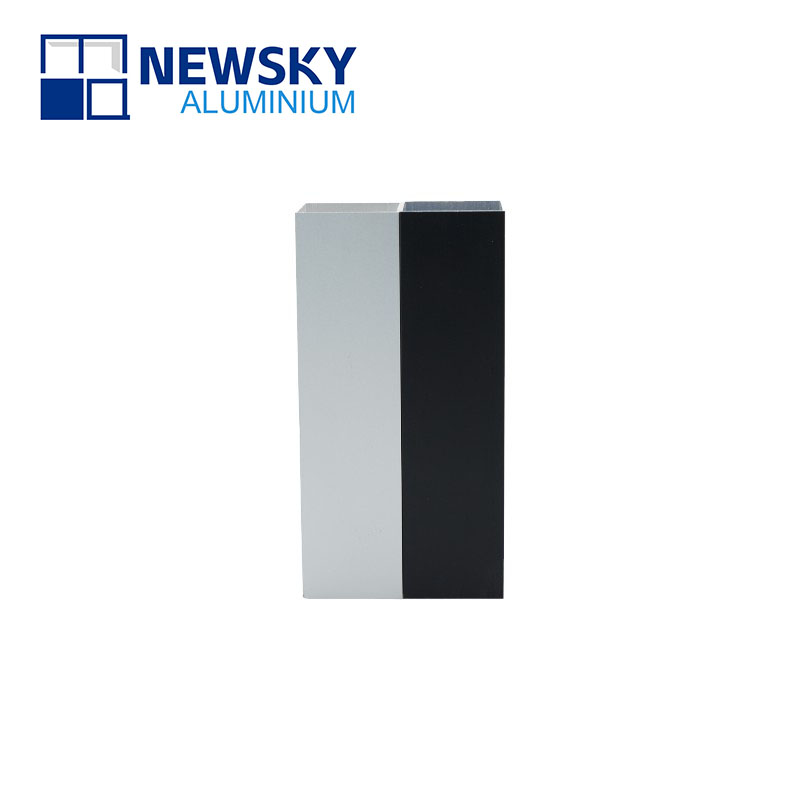

The architectural landscape heavily favors minimalist, dark aesthetics. Because of this, the transition from traditional wet paint or powder coating to a black aluminum profile has become standard practice in high-end commercial and residential builds. Paint sits on top of the metal surface. It acts as an independent layer. Over time, paint inevitably flakes, chips, or peels under heavy use. Anodizing offers a fundamentally different chemical solution. It is an electrochemical process. It converts the metal surface into a durable, corrosion-resistant anodic oxide finish.
This structural integration provides exceptional wear resistance. The oxide layer becomes a permanent part of the underlying substrate. It cannot peel or blister. High-traffic doorframes endure constant physical impacts, friction from weather stripping, and exposure to cleaning chemicals. Anodized surfaces handle these stressors easily. The hardness of the aluminum oxide layer rivals that of a sapphire. It protects the softer aluminum core from daily mechanical wear.
Specifying anodized finishes also drives significant long-term value. Higher initial processing costs often deter procurement teams. However, this upfront investment pays off rapidly. You eliminate the need for periodic repainting or touch-ups. Reduced maintenance requirements extend the service life of the door system considerably. In harsh exterior environments facing UV radiation or coastal salt spray, anodized aluminum retains its structural integrity and visual appeal far longer than powder-coated alternatives. This creates a highly favorable return on investment for building owners.
Proper specification dictates the success of an exterior door system. You must define precise surface treatment parameters when ordering an anodizing door profile. The industry standardizes anodic coatings based on thickness. The two most common designations are Class 1 and Class 2 finishes.
Class 2 coatings provide a protective film thickness between 10 and 17 microns. Engineers typically use Class 2 for interior applications. Class 1 coatings require a minimum thickness of 18 microns, usually ranging up to 25 microns. Exterior doors demand Class 1 specifications. The thicker oxide layer successfully resists severe weathering, industrial pollution, and heavy mechanical abrasion.
Specification Parameter | Class 2 Anodizing | Class 1 Anodizing |
|---|---|---|
Micron Thickness | 10 to 17 µm | 18 to 25 µm |
Application Environment | Interior door frames, light duty | Exterior doors, storefronts, heavy duty |
Corrosion Resistance | Moderate | Exceptional |
UV Stability | Standard | Maximum protection |
Achieving a deep, stable black color requires a specific dyeing process. You must choose between two-step electrolytic coloring and organic dyeing. We strongly advise against organic dyes for any exterior building aluminum profile. Organic dyes degrade quickly under UV exposure, turning a premium black door into a faded bronze or purple over a few years. Two-step electrolytic coloring deposits inorganic metal salts (like tin or cobalt) directly into the microscopic pores of the aluminum oxide. This inorganic method guarantees absolute UV stability.
Finally, sealing quality determines the longevity of the finish. The anodizing process leaves the oxide layer porous. Manufacturers must seal these pores to prevent surface contamination. Proper hydrothermal sealing (using boiling deionized water) or cold chemical sealing (using nickel fluoride) locks the color pigments in place. Inadequate sealing leaves the surface vulnerable to staining, fingerprints, and chemical degradation.
Many procurement managers overlook the physics of anodizing. This process does not just add material to the outside of a part. It simultaneously consumes the base metal. Engineers call this the "50/50 Growth and Penetration Rule." When an oxide layer forms, it penetrates the metal substrate by 50% of its total thickness. It then builds up outward by the remaining 50%.
If you specify a 20-micron Class 1 coating, the metal surface grows outward by 10 microns. This mathematical reality severely impacts precision assemblies. For a simple flat surface, a 10-micron growth rarely causes issues. However, door assemblies rely on intricate geometries.
Consider a tight channel designed to hold weather stripping. The coating grows inward from both sides of the channel. A 10-micron growth per side shrinks the internal diameter of the channel by 20 microns total. Conversely, an external mating part like a hinge pin grows by 20 microns on its overall diameter. If you fail to account for pre- and post-treatment tolerances, these mating parts will bind or refuse to assemble.
Managing tolerance stacking is critical for complex multi-profile door frame aluminum assemblies. Small dimensional errors accumulate rapidly across multiple connecting extrusions. Use the following steps to mitigate cumulative errors:
Identify all critical friction points and mating surfaces during the CAD design phase.
Calculate the nominal pre-anodized dimensions by subtracting the expected coating growth.
Define acceptable post-anodizing ranges and communicate them clearly to the extrusion die maker.
Specify tolerance zones based on objective industry baseline metrics.
Always reference established industry standards to maintain accountability. EN 12020-2 dictates the standard extrusion tolerances for precision architectural profiles. Similarly, ASTM B221 outlines comprehensive dimensional requirements before surface treatment. Mandating compliance with these objective standards protects your project from sloppy manufacturing.
Surface treatment success begins at the billet casting stage. Selecting the correct aluminum alloy fundamentally dictates both structural integrity and cosmetic appearance. The industry standard for architectural extrusions is the 6000 series. Specifically, alloy 6063 remains the optimal choice for a premium aluminum door profile.
Engineers often debate using 6061 versus 6063. Alloy 6061 offers higher yield strength. However, it contains higher levels of silicon and magnesium. These alloying elements react poorly in the anodizing bath. They produce a dull, grayish, or matte appearance that ruins a deep black finish. Alloy 6063 offers excellent extrudability and superior surface finish quality. It responds beautifully to electrolytic coloring, yielding a rich, uniform black aesthetic.
Temper considerations also play a vital role. Temper refers to the heat treatment process used to harden the metal. T5 temper provides standard structural rigidity. It cools naturally from the extrusion press and undergoes artificial aging. This works perfectly for most residential and standard commercial doors. For oversized, high-traffic, or heavy-duty commercial doors, specify a T6 temper. T6 involves water quenching at the press followed by artificial aging. This yields higher tensile strength to support heavy glass panes without bowing.
The quality of the raw aluminum billet drastically affects the grain structure. Impurities in the metal manifest as cosmetic defects post-anodizing.
Best Practice: Always specify primary (prime) aluminum billets. Prime billets offer a homogenous grain structure. They ensure the anodizing bath reacts uniformly across the entire surface.
Common Mistake: Accepting highly recycled billets with uncontrolled scrap content. High levels of iron or zinc impurities create visible streaks, dull spots, and uneven color banding after the black dye sets. Anodizing magnifies surface defects; it never hides them.
Vetting your extrusion and finishing partner properly prevents catastrophic project delays. A supplier might produce a perfect sample, but bulk manufacturing requires rigorous process control. Your primary evaluation metric should be batch-to-batch color consistency.
Electrolytic coloring is highly sensitive. Slight variations in bath temperature, voltage, acid concentration, or immersion time will alter the shade of black. Reliable manufacturers utilize automated dosing systems to maintain bath chemistry. They also measure color consistency objectively using spectrophotometer data. Ask your supplier for their CIELAB (L*a*b*) color space tolerances. A trustworthy partner will gladly share this empirical data.
Tooling and die maintenance directly correlates with final dimensional accuracy. An extrusion die wears down with every push. As the die widens, the aluminum wall thickness increases, and surface finish degrades. Die lines (microscopic longitudinal ridges) become prominent. When you anodize a profile with heavy die lines, the glossy or matte finish highlights these imperfections instantly. Verify that your supplier operates a strict die polishing and replacement schedule.
When reviewing bids, watch out for clear red flags in procurement.
Supplier Vetting Comparison Chart | ||
Evaluation Area | Green Flags (Reliable Supplier) | Red Flags (High-Risk Supplier) |
|---|---|---|
Pricing Structure | Competitive quotes aligned with market LME aluminum prices. | Extremely low quotes (indicates thin anodic coatings or cheap recycled billets). |
Quality Documentation | Provides detailed material data sheets and pre/post tolerance charts. | Refuses to commit to specific micron thicknesses in writing. |
Standard Compliance | Maintains active ISO 9001 and complies with EN/ASTM standards. | Relies solely on visual "good enough" internal inspections. |
An extremely low quote usually indicates corner-cutting. The supplier might rush the sealing process, reduce the anodic coating thickness to save electricity, or use inferior raw materials. These shortcuts lead to fading, chalking, and premature mechanical failure on the job site.
Successful integration of black anodized profiles requires strict attention to detail. You must practice concurrent engineering to align structural tolerances with chemical finishing parameters. Anodizing alters part dimensions, meaning your CAD drawings must account for predictable growth and penetration. Specifying Class 1 thickness, prime 6063 alloy, and two-step electrolytic coloring guarantees a durable, fade-resistant exterior product.
Before moving forward, take definitive action to protect your supply chain. Advise your procurement team to request specific material data sheets and documented tolerance charts covering pre- and post-anodizing measurements. Always demand physical finish samples generated from the exact alloy and temper you intend to use. Verifying these elements before commissioning custom dies or bulk orders eliminates guesswork and ensures flawless door assemblies.
A: It depends on the coloring process. Inorganic, two-step electrolytic coloring provides exceptional UV resistance and will not fade. It deposits metal salts into the pores. Conversely, cheaper organic dyes degrade rapidly under direct sunlight. Always specify electrolytic coloring for exterior doors to ensure long-lasting color stability.
A: The standard rule of thumb is the 50/50 rule. A 20µm coating penetrates the metal by 10µm and adds 10µm of outward growth per surface. For a channel, this reduces the total internal diameter by 20µm (10µm from each facing side). Adjust pre-treatment machining accordingly.
A: No. Profiles must undergo the anodizing process before the polyamide thermal barrier is rolled and crimped into the extrusions. The harsh acids and high-temperature baths used during anodizing and sealing will warp, degrade, or completely destroy the plastic thermal break material.
A: White spots typically indicate poor rinsing, inadequate sealing, or chemical entrapment during manufacturing. If acids remain trapped in the pores before sealing, they leach out and ruin the finish. Streaks usually result from impurities in low-grade aluminum billets. Establish strict QC metrics to monitor these specific defects.
